The Portronic Powerpad 3 is for Atari XL/XE and Atari 2600/7800 only. Do not connect to an Atari ST!
This controller multiplexes the paddle and joystick signals to get up to 153 different input combinations.

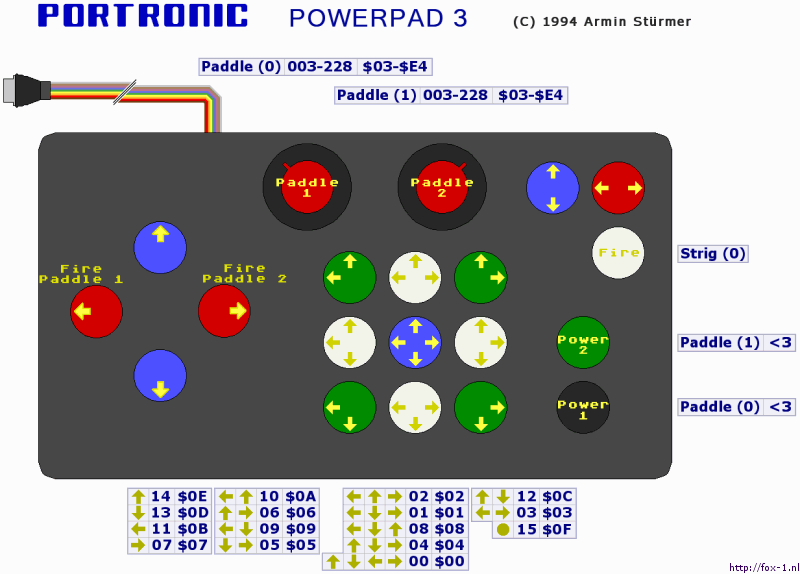

Powerpad 3 overview
